MU-4-434 System examples

System example 1

1:1 one-way and two-way communication is possible. This can be used to communicate between equipment and a PC.

System example 2

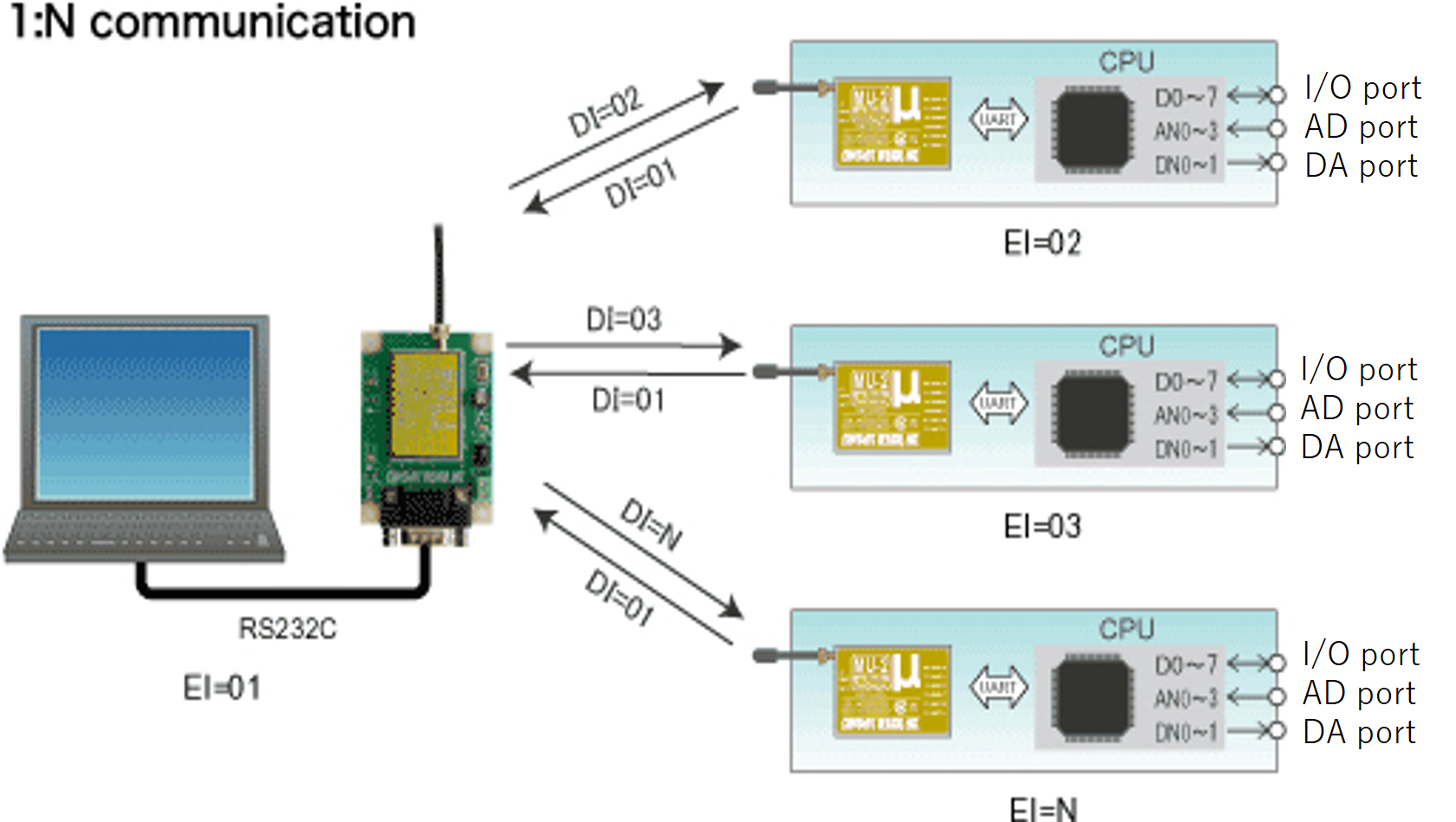

1:N one-way and two-way communication is possible. This can be used for centralized control systems using a PC.

System example 3

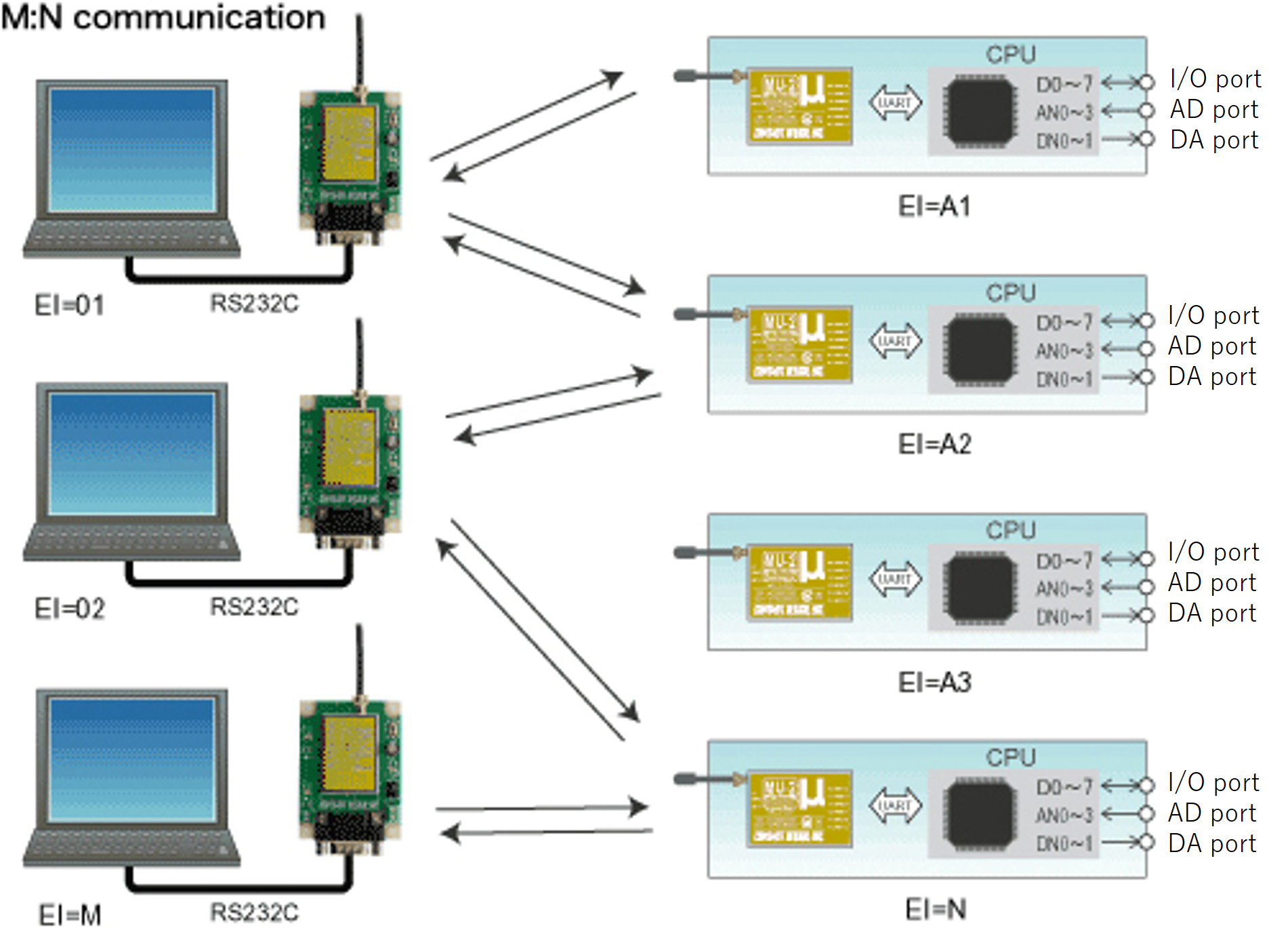

M:N communication is possible where each unit can communicate with other units.
This can be used for systems where different information is sent to different destinations.

System example 4

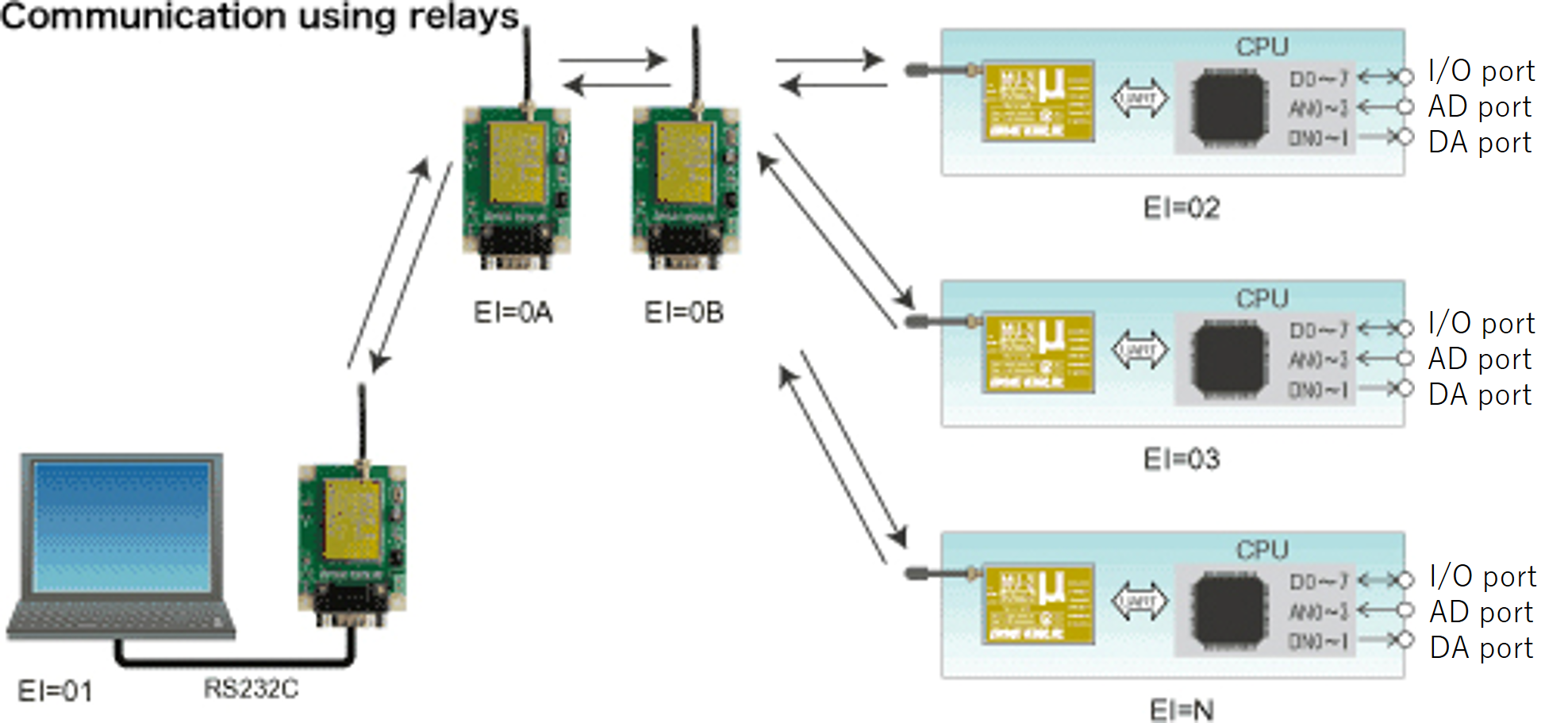

The MU-4-434 can communicate across relays of multiple units. This can be used to communicate with equipment located several kilometers away.
Different relay routes can also be set for different communications.

Note: MU-4-434 and MU-2-R should not be used together when using relay or ACK function. For more information, please contact Circuit Design.
